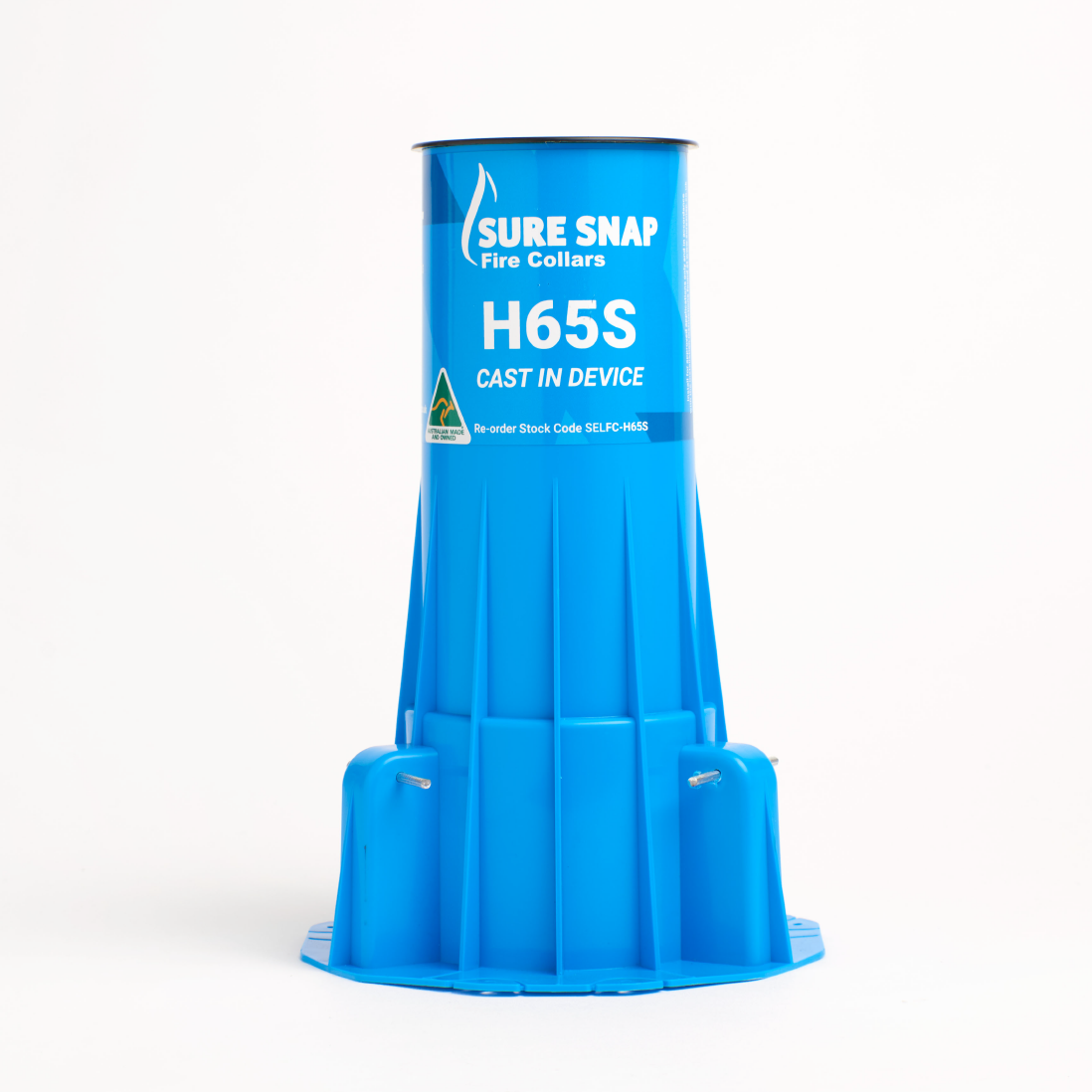

• P_Sure Snap_H65S_Single_Front3

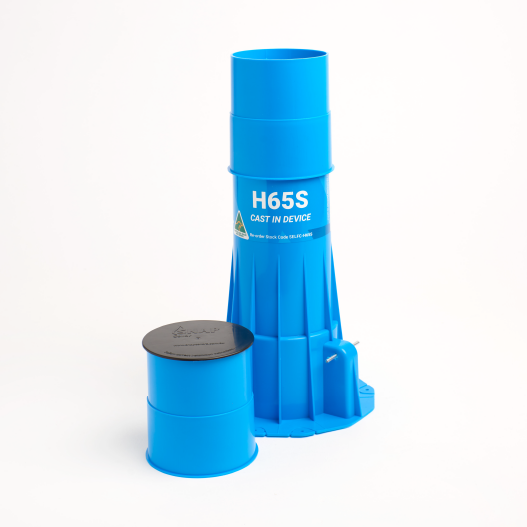

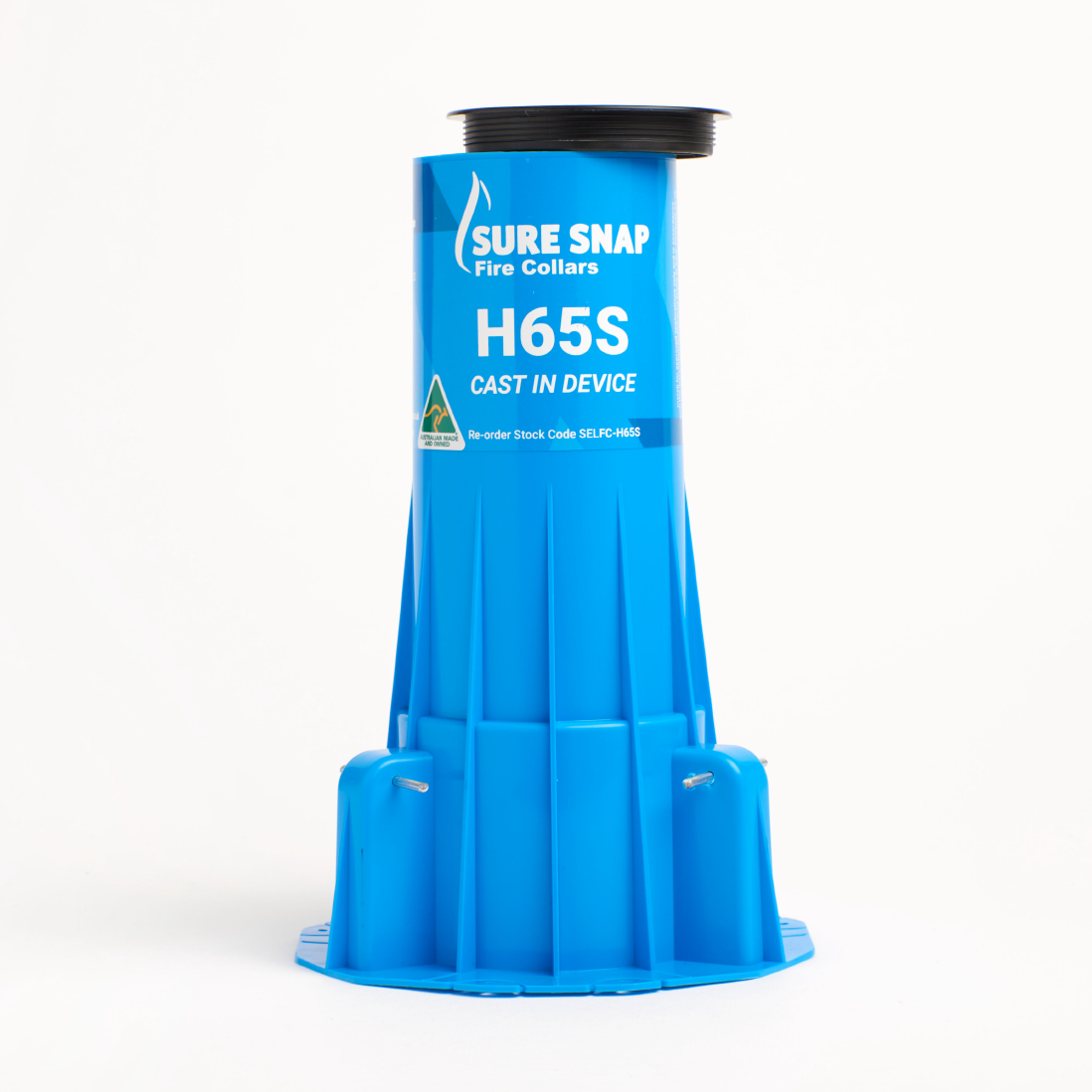

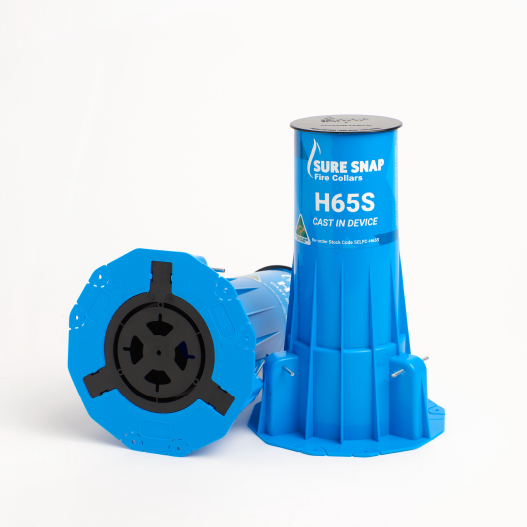

The H65S is a cast-in fire collar for concrete slabs 150mm and thicker.

For use with a range of pipe types and diameters.

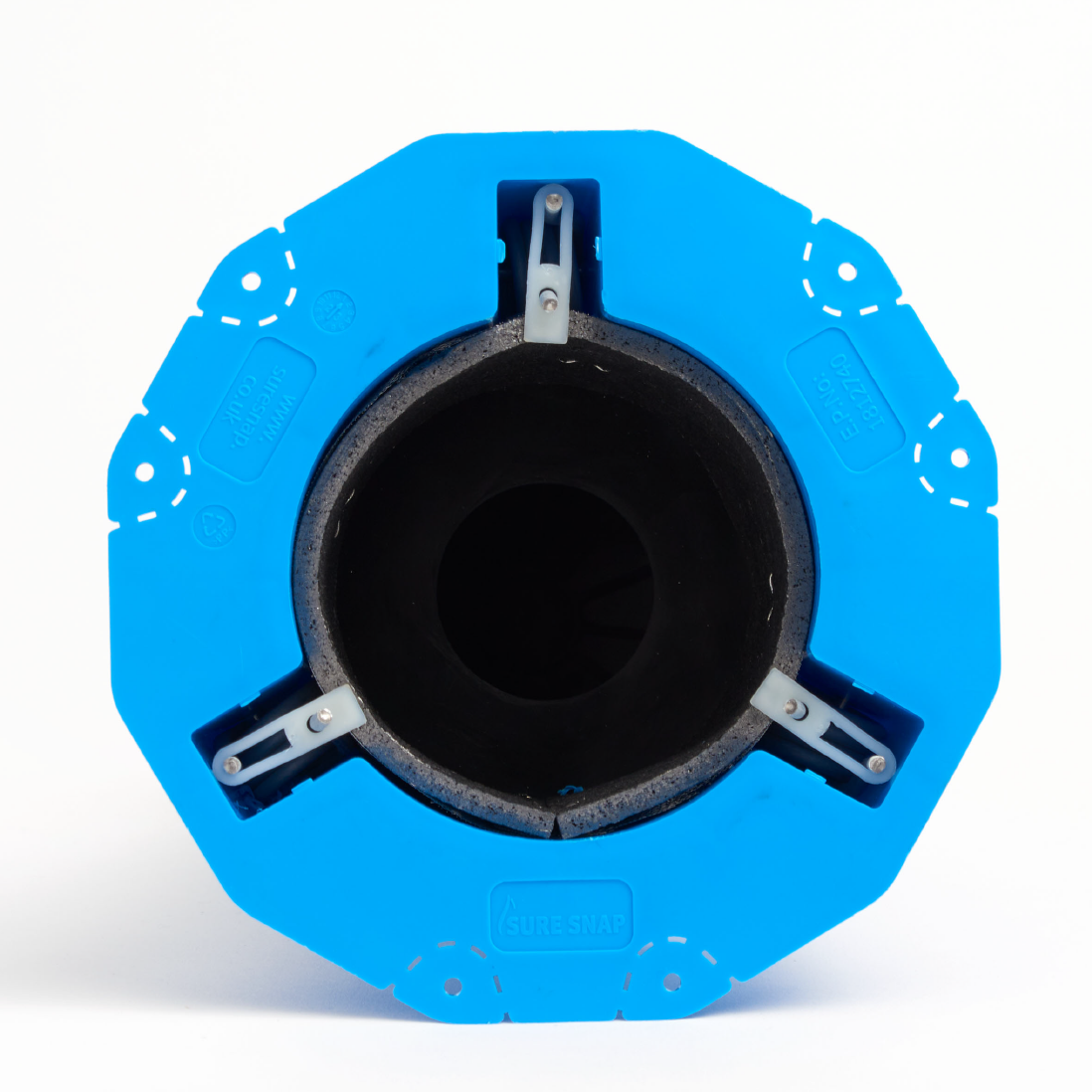

Has an internal rubber ring that seals against the pipe.

Click here for Fire Rating Table

Click Here for Technical Literature

v2 Selkent button image

Association for Specialist Fire Protection (ASFP)

Collar Approvals

EN Approvals
PipeMeasured pipe
diameter
range* (mm)		Measured pipe wall thickness range* (mm)Measured pipe end or socket wall thickness range* (mm)IntegrityInsulationReport
PVC40 to 633.3 to 5.1180240BRE P104650-1003
PVC + Coupling40 to 633.5 to 5.03.5 to 5.0180240BRE P104650-1003
PP40 to 502.2 to 2.3180240BRE P104650-1003
PP + Coupling40 to 501.8 to 2.71.8 to 2.7180240BRE P104650-1003
PE-HD26 to 643.0 to 6.4120240BRE P104650-1003
PE-X16 to 633.1 to 9.79090BRE P104650-1003
* Note: The measured ranges of the pipe, and the pipe end/socket, must be considered separately. All values are measured sizes, rather than nominal.

Product Specs

Element: Concrete slab

Pipe Type: PE-HD, PVC, PE-X, PP
