• P_Sure Snap_H110S

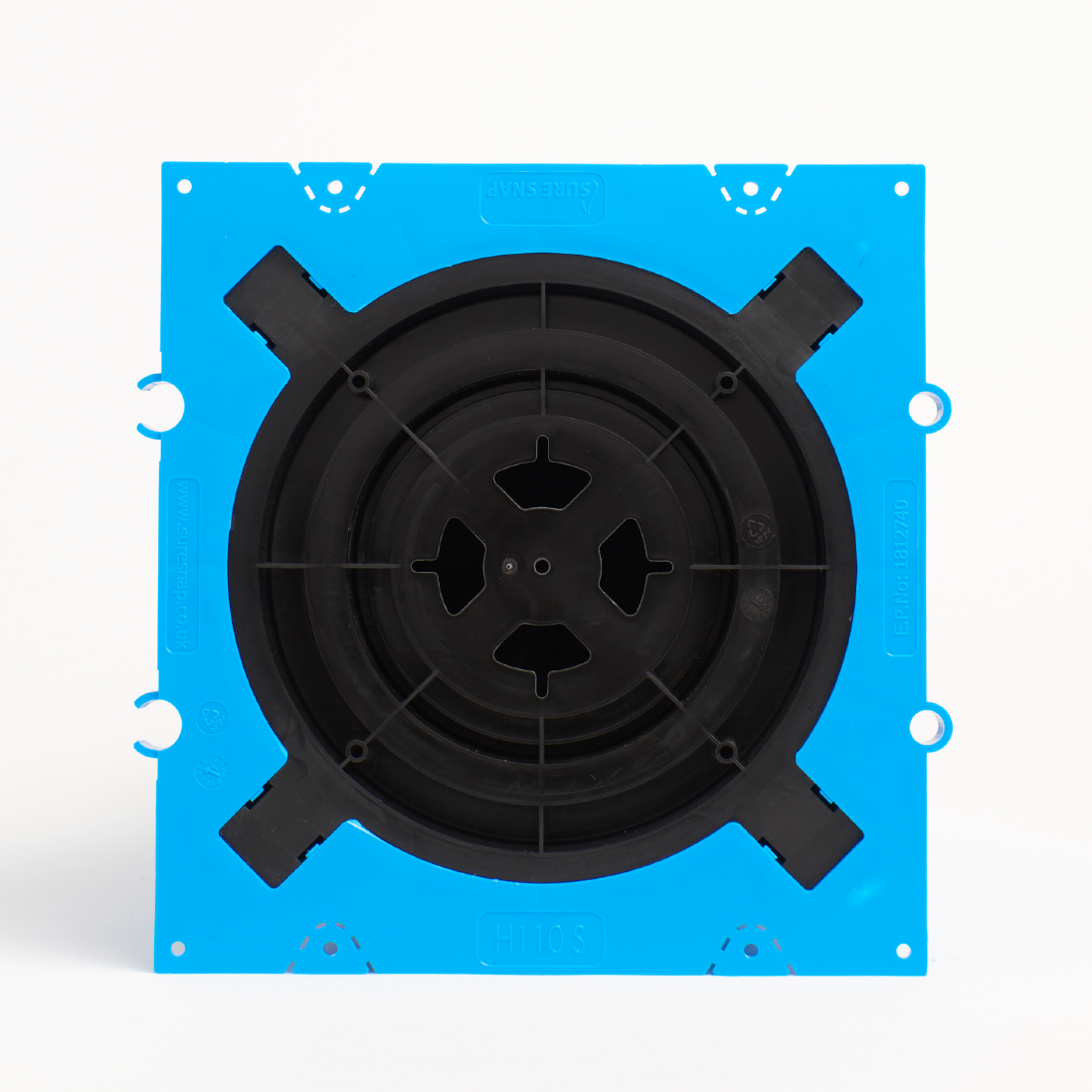

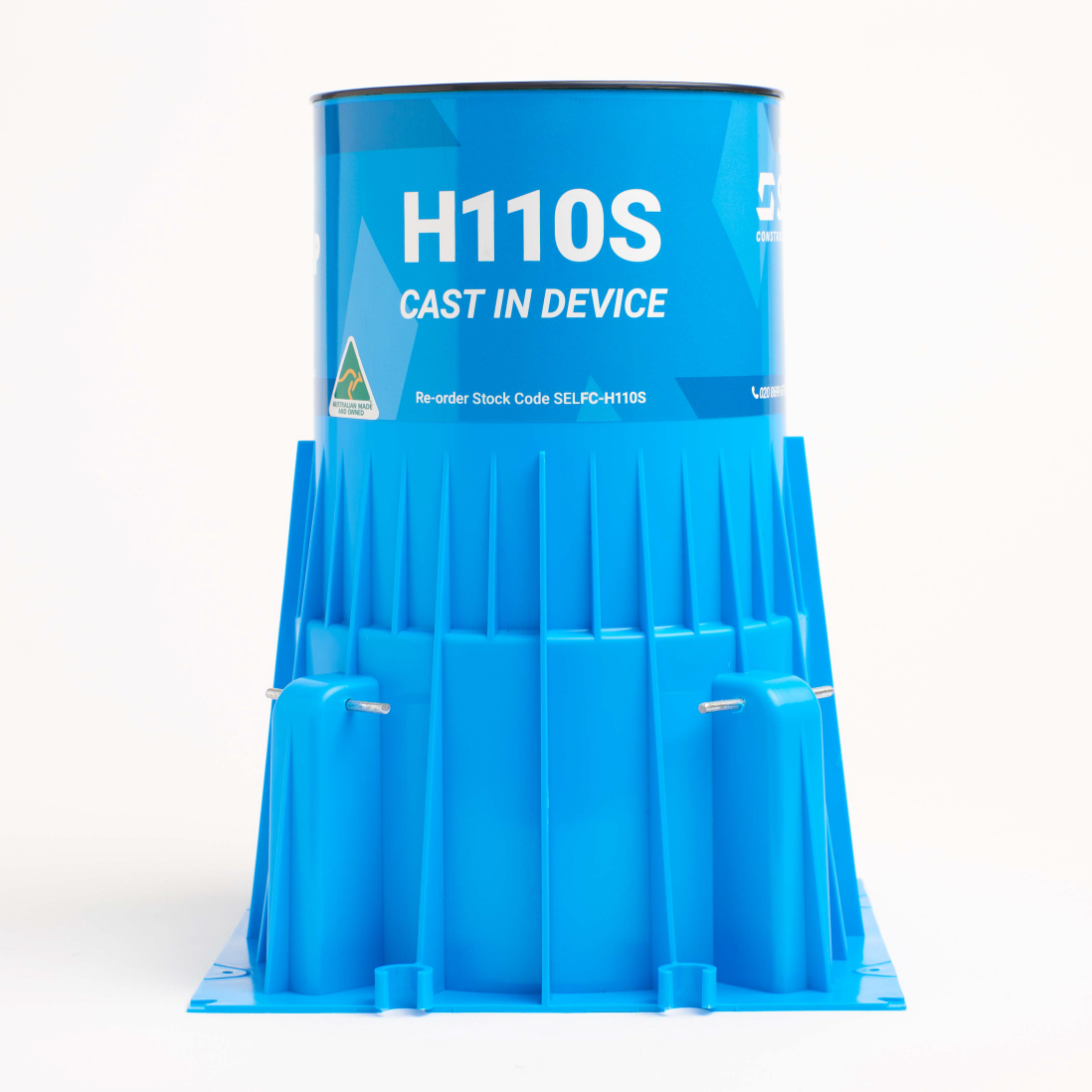

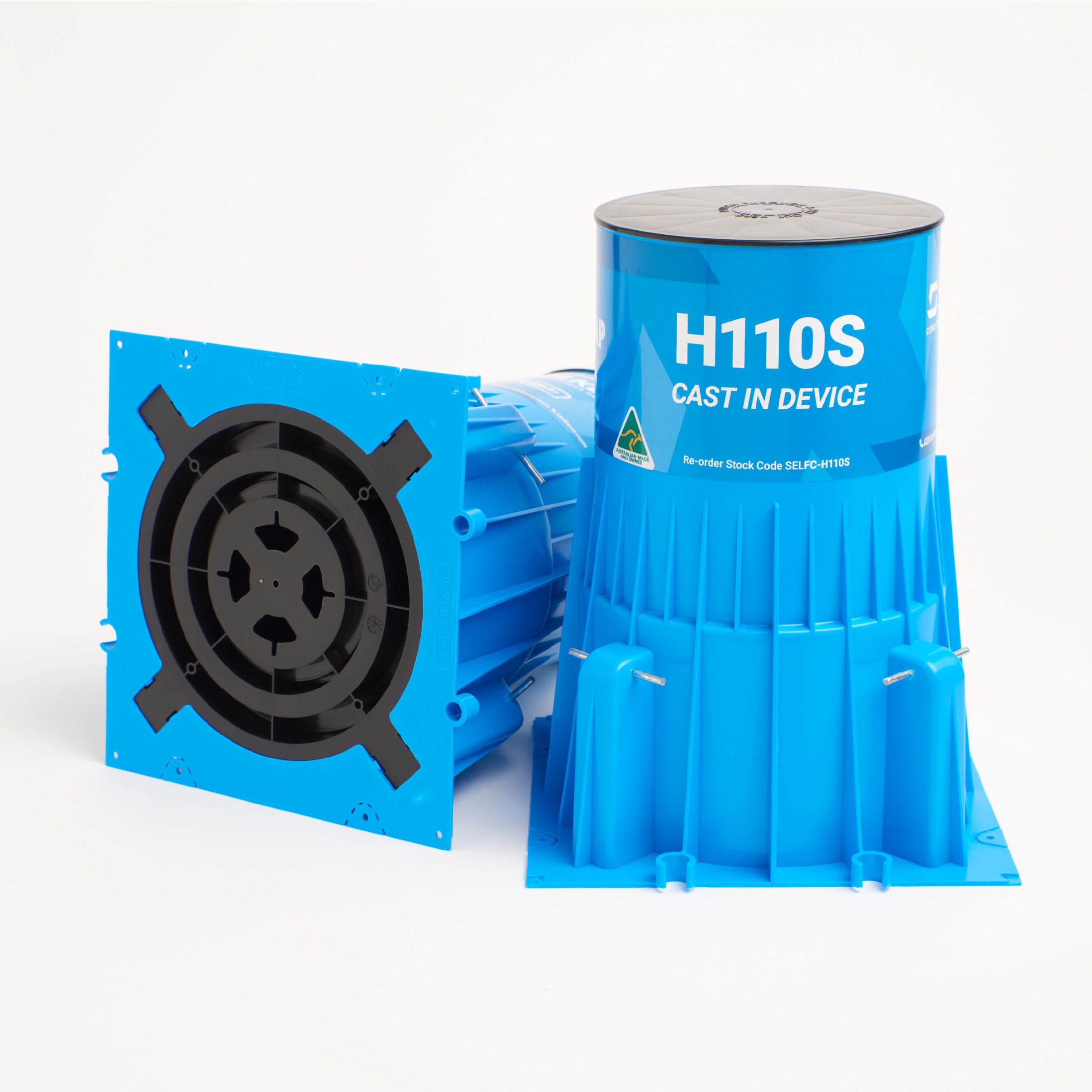

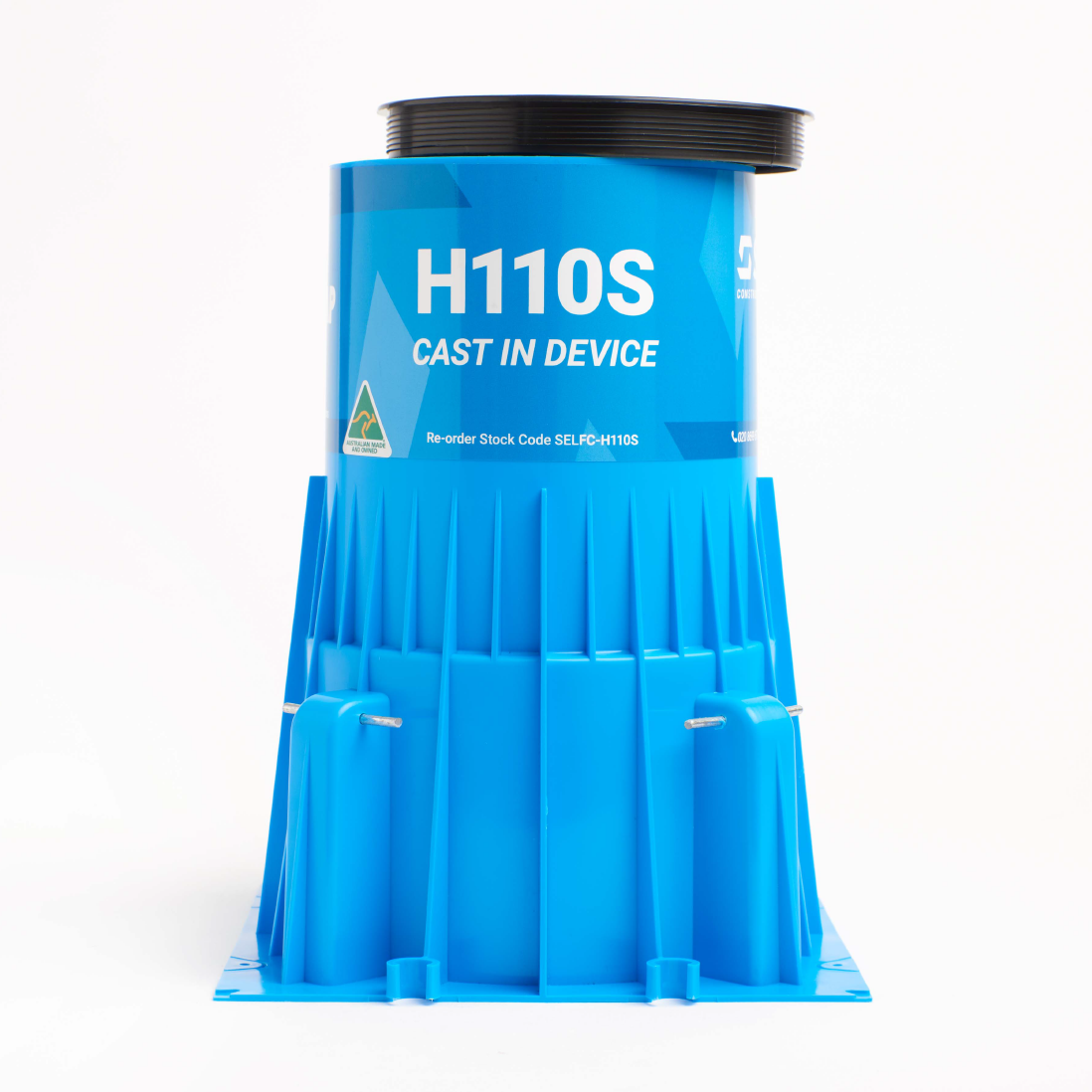

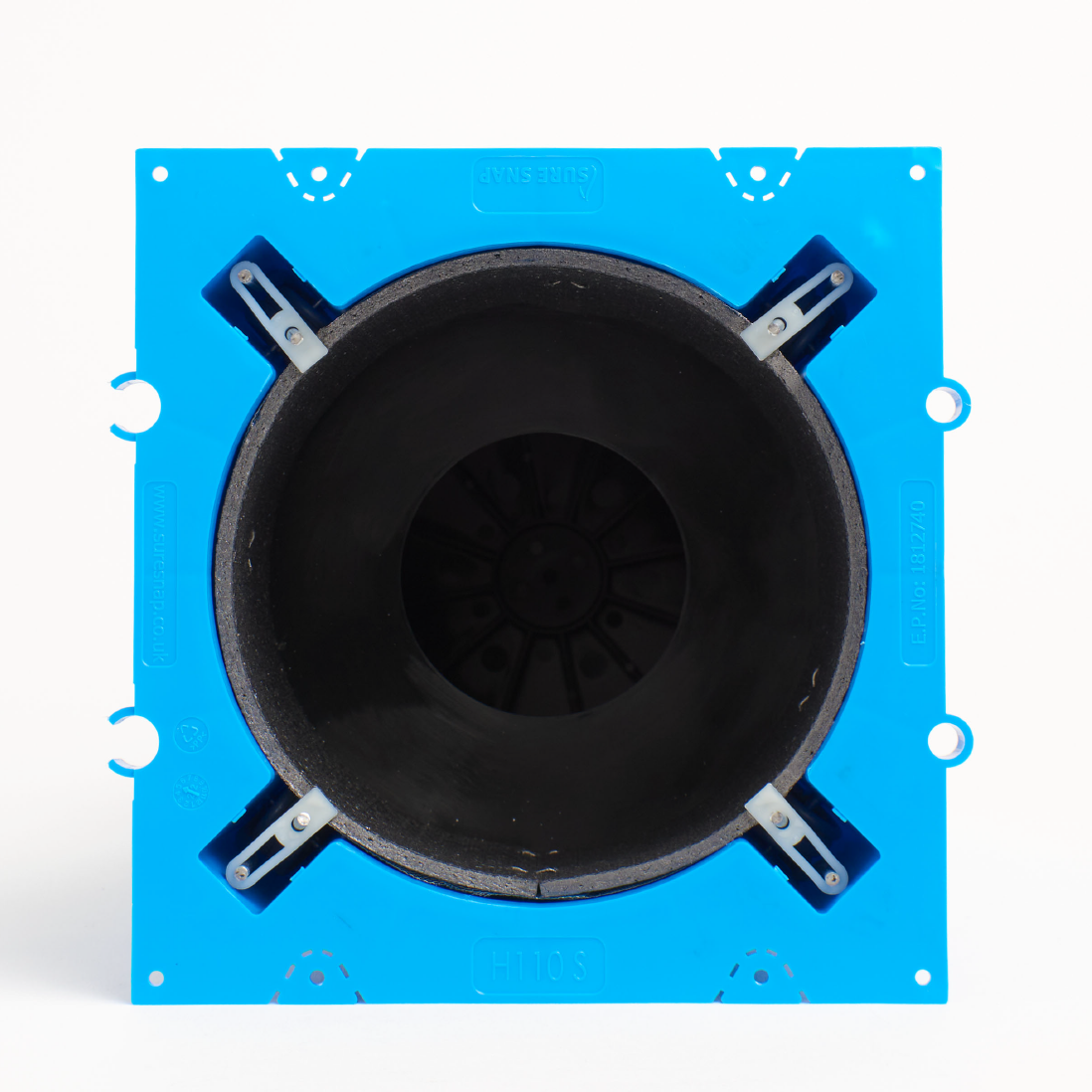

The H110S is a high-top, cast-in fire collar for concrete slabs 150mm and thicker.

For use with a range of pipe types and diameters, including the Manifold Recess Former.
Has an internal rubber ring that seals against the pipe.

Click here for Fire Rating Table

Click Here for Technical Literature

v2 Selkent button image

Association for Specialist Fire Protection (ASFP)

Collar Approvals

EN Approvals
PipeMeasured pipe
diameter
range* (mm)		Measured pipe wall thickness range* (mm)Measured pipe end or socket wall thickness range* (mm)IntegrityInsulationReport
PVC55 to 1102.0 to 7.2180180BRE P104650-1003
PVC + Coupling50 to 1102.0 to 7.32.0 to 7.0180180BRE P104650-1003
PP50 to 1102.1 to 3.8120180BRE P104650-1003
PP + Coupling50 to 1102.2 to 3.82.2 to 3.8180240BRE P104650-1003
PE-HD50 to 1103.4 to 10.9120120BRE P104650-1003
* Note: The measured ranges of the pipe, and the pipe end/socket, must be considered separately. All values are measured sizes, rather than nominal.

Product Specs

Element: Concrete slab

Pipe Type: PE-HD, PVC, PP
